ZN-7100-2DHO

Enterprise-Class Wi-Fi Access Point for High-Density Enterprise and Hotspot Environments

The high performance ZN-7100-2DHO is an indoor wireless access point compliant with the 802.11n standard. The ZN-7100-2DHO operates in the 2.4GHz and 5GHz frequency ranges while delivering up to a maximum data rate of 600Mbps. This makes the ZN-7100-2DHO ideal for serving high density environments where high throughput is in demand as well as handling latency sensitive applications such as Voice and Video over Wi-Fi. The ZN-7100-2DHO is designed to meet the needs of the enterprise and hotspot environments serving hotels, schools, retail outlets, branch offices and public venues.

In addition to performing as a stand-alone access point, the ZN-7100-2DHO can be controlled by Zcomax AP Controllers, which enables centralized management of wireless network configuration, security encryption, network authentication, and user access policies.



Benefits

Outstanding performance at a competitive price
Based on 802.11n 2x2 MIMO dual-band radio technology, the ZN-7100-2DHO provides up to 600Mbps of reliable throughput over a greater range than many competing access points, making this access point an economical solution suitable for today’s most demanding applications.



Twice the bandwidth—ideal for video streaming
The dual-band ZN-7100-2DHO allows simultaneous operation at both 2.4GHz and 5GHz frequencies, providing twice the bandwidth. With dual-band support, one can dedicate latency sensitive applications to the 5GHz band to avoid interference.

Smart RF management optimizes throughput and mitigates interference
Utilizing automatic channel selection along with adjustable transmit power control, the AP can mitigate local interference. This results in providing a reliable high-performance connection to all connected Wi-Fi clients.

Flexibility
The ZN-7100-2DHO offers several operating options including AP, Bridge, Repeater and Station modes. This flexibility enables the device to accommodate a variety of networking and deployment needs.



Increased efficiency and capacity
Spectrum navigation directs dual-band clients to the 5GHz radio where there is less interference and more channels available while also providing load balancing to direct clients to less congested Access Points thus distributing clients evenly across APs.

Guaranteed multicast streaming
With IGMP, the ZN-7100-2DHO has the ability to convert multicast traffic to unicast traffic. As a result, it is able to deliver video traffic to each subscriber at the highest possible data rate the client is capable of supporting.

Ease of deployment
Support for standard 802.3at Power over Ethernet reduces deployment costs by simplifying the installation process in optimal but difficult-to-reach locations.

Sleek design, flexible Installation
The ZN-7100-2DHO's aesthetically-pleasing design with flexible mounting options (ceiling, wall, or desktop) fits indoor environments like offices, hotels, classrooms, etc. Internal antennas are optimized for superior RF performance.

Advanced WLAN applications with AP controller

When used with the Zcomax controller, each ZN-7100-2DHO supports a wide range of value-added applications such as guest networking, hotspot authentication, wireless intrusion detection and much more.

Key Features

  • Dual-band concurrent radio (2.4GHz/5GHz)

  • Multiple operating modes: managed AP mode and standalone mode

  • Auto channel selection

  • Auto transmit power adjustment

  • Authentication: 802.1x, WPA-Enterprise,WPA2-Enterprise

  • Spectrum Navigation and load balancing

  • Advanced QoS packet classification and automatic priority for latency-sensitive traffic

  • IP multicast video streaming support

  • Up to 16 BSSIDs

  • Standard 802.3at Power over Ethernet (PoE)

  • Four integrated antennas

  • Desktop, wall, and ceiling mountable

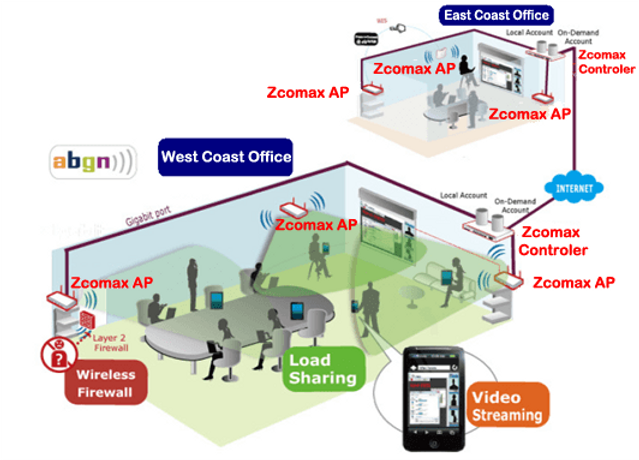

Deployment for Branch Offices


Dual Band Deployment
